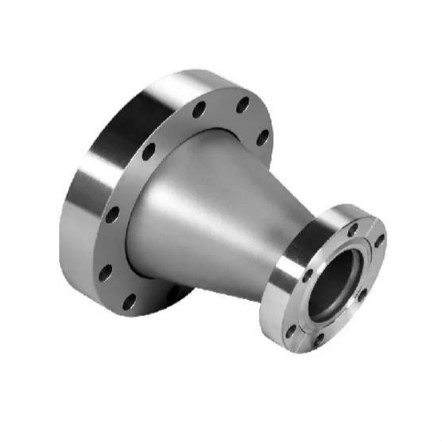

Reducing Flanges
Description
Sanghvi International is a manufacturer, supplier and exporter of Reducing Flanges that are custom built to suit the varying demands of diverse industries. We are expanding our presence in foreign countries as well. A complex piping network encompasses pipes of varied sizes, which may also be designed in a manner that these pipes may require frequent changes. Consequently, the pipe’s diameter undergoes regular changes to adjust to the incoming stream of variations. Here is where a Stainless Steel Reducing Flange enters: be it in Monel, Inconel, Hastelloy, Carbon Steel or Alloy Steel, it possesses the ability to join pipes of varied sizes together with great ease. ANSI B16.5 Alloy Steel Reducing flanges can endure extreme pressure
and are suitable for high-pressure systems like condensers and boilers

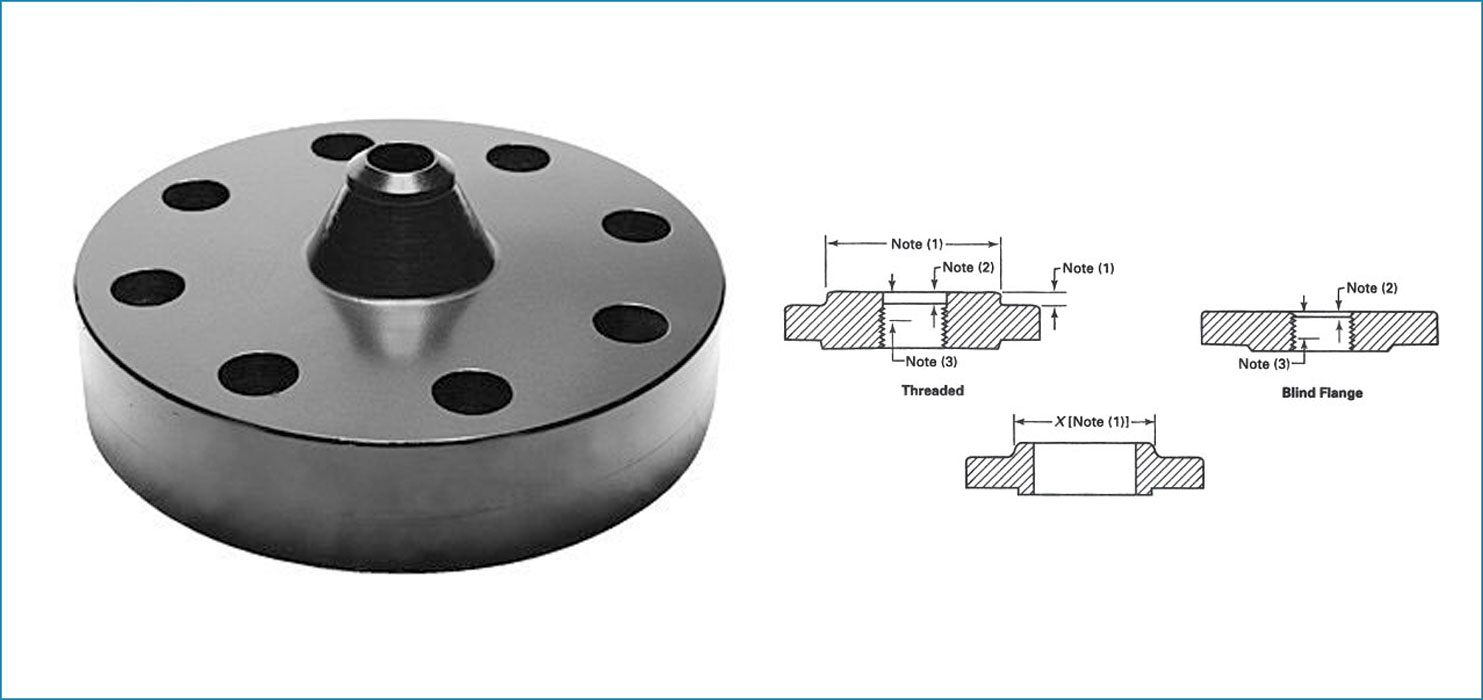

Product Structure
Standard Specication For Reducing Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of Reducing Flanges :
Stainless Steel Reducing Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Reducing Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Reducing Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Reducing Flanges : ASTM A350, LF2, LF3
Alloy Steel Reducing Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Reducing Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C
71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Reducing Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
Types of Reducing Flanges
| ANSI B16.5 Reducing Flanges | ANSI B16.5 Class 150 Reducing Flanges |
| ANSI B16.5 Class 300 Reducing Flanges | ANSI B16.5 Class 400 Reducing Flanges |
| ANSI B16.5 Class 600 Reducing Flanges | ANSI B16.5 Class 900 Reducing Flanges |
| ANSI B16.5 Class 1500 Reducing Flanges | ANSI B16.5 Class 2500 Reducing Flanges |
| Industry Standard Class 75 Reducing Flanges | Industry Standard Class 125 Light-weight Reducing Flanges |
| Industry Standard Class 125/150 Reducing Flanges | Industry Standard Class 150 Reducing Flanges |
| Industry Standard Class 175 Reducing Flanges | Industry Standard Class 250 Reducing Flanges |
| Industry Standard Class 300 Reducing Flanges | Industry Standard Class 350 Reducing Flanges |
| Plate Reducing Flanges | Ring Type Joint Reducing Flanges |
| Drawing Reducing Flanges | Square Reducing Flanges |
| Nipo Reducing Flanges | Reducing Reducing Flanges |
| Forged Reducing Flanges | ASME B16.47 Series A Reducing Flanges |
| ASME B16.47 Series B Reducing Flanges | ANSI B16.36 Orifice Reducing Flanges |
| 150Lbs Reducing Flanges | 300Lbs Reducing Flanges |
| 600Lbs Reducing Flanges | 900Lbs Reducing Flanges |
| 1500Lbs Reducing Flanges | 2500Lbs Reducing Flanges |
| DIN Reducing Flanges PN6-PN40 | Stainless Steel Reducing Flanges |
