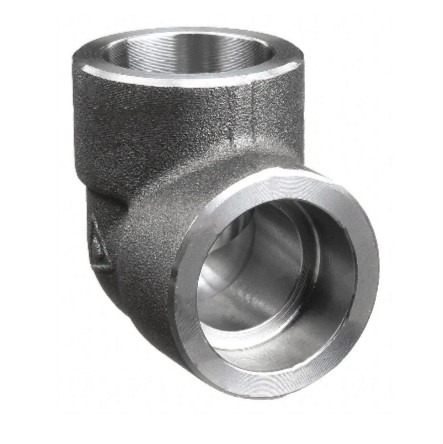

Socket Weld 90 Deg Elbow
Description
Sanghvi International provides a variety of products to its customers, especially Socket Weld 90° Elbows. They are offered to clients with the option of customizing the size as per the individual purchasers. Socket Weld is pipe attachment detail in which a pipe is inserted into the recessed area of a valve, fitting or flange. Stainless Steel Socket Weld 90° Elbows make 90° changes of direction in the run of the pipe. These ANSI B16.11 Forged Socket Weld 90° Elbows come in two
types; short radius elbow and long radius elbow. These fittings add pressure losses to the system due to impact, re-acceleration and friction. As an ISO certified company, HGFF Group Co., Ltd is one of the top manufacturers and stockists of ASME B16.11 Socket
Weld 90° Elbows. It is also made available to clients in customized sizes.
Product Structure
Standard Specication For Forged Socket Weld 90 Deg Elbow
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8″ NB TO 4″ NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Forged Elbow, 90 Deg Elbow.
Material & Grades of Forged Socket Weld 90 Deg Elbow :
Stainless Steel Forged Socket Weld 90 Deg Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L,
F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld 90 Deg Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld 90 Deg Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld 90 Deg Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM /
ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C
71500 ( CU -NI- 70/30)
Nickel Alloy Forged Socket Weld 90 Deg Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) ,
UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) ,
UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
ASME B16.11 Forged Socket Weld 90 Deg Elbow Available Types
| Forged Socket weld Elbow 90 Degree | Forged Socket weld Long Radius 90 Degree Elbows |
| 150 lb. Socket Weld Fittings Pipe Elbow | Socket weld 90° Short Radius Elbow |
| ASME B16.11 90 deg Socket weld Elbow | 90 Degree Elbow 3000LB Socket Weld |
| Socket Weld Fittings 90 Degree Pipe Elbow | Long Radius Socket Weld 90 Deg. Forged Elbows |
| ANSI B16.11 90 Degree Forged Elbow | BS 3799 Forged 90 Degree Elbow |
| Forged Socket weld 90 Deg Elbow | Socket weld 90° Pipe Elbow |
| Socket weld 90deg. Elbow | High Quality Socket weld 90° Elbow |
| 90° Socket Weld Elbow | Socket Weld 90 elbow |
