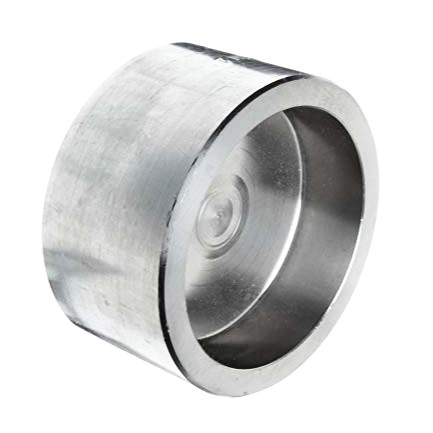

Socket Weld Pipe Cap
Description
HGFF Group Co.,Ltd. is a manufacturer, distributor and supplier of Socket Weld Caps, It is an innovative ISO certified company that uses responsive services to entice the customers. A Socket Weld fitting is a kind of pipe fitting which is inserted into a recessed
valve, fitting or flange. A Stainless Steel Socket Weld Cap is a type of pipe fitting, usually liquid or gas-tight which covers the end of a pipe to stop the ow. The functions of a cap are similar to a plug. They have excellent corrosion resistance. They are mainly used for small pipe diameters. This vast variety is provided to the clients by the renowned
stockist and exporter, Sanghvi International , in multiple sizes, as per the customized requirements. They are offered to clients
with the option of customizing the size as per the individual purchasers

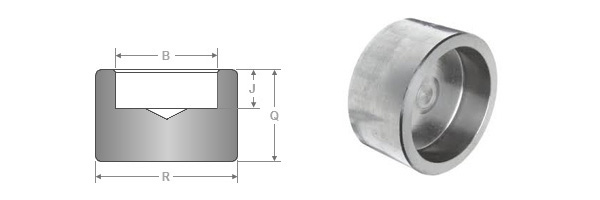

Product Structure
ANSI/ASME B16.11 Socket Weld Cap-Standard Specification
| Dimensions | ASME 16.11, MSS-SP-79, MSS-SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Pressure Ratings | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Socket Weld Cap, Socket Weld End Cap, Socket Weld Pipe Cap |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards of Socket Weld End Pipe Cap
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
Forged Socket Weld Pipe Cap Material Grades
Nickel Alloy Forged Socket Weld Pipe Cap :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOYY C 276)
Stainless Steel Forged Socket Weld Pipe Cap :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld Pipe Cap :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld Pipe Cap :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld Pipe Cap :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld Pipe Cap : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
