Threaded / Screwed Hex Nipple
Description
An ISO certied company, HGFF Group Co.,Ltd. is a leading exporter, stockist and supplier of Threaded /Screwed Hex Nipples. The high-quality raw material is utilized along with modern equipment to produce these fittings. Stainless Steel Threaded Hex Nipples are used to t a straight end pipe or a hose. They are tested and verified and are proven to have dimensional accuracy, durability and precision. These ANSI B16.11 Threaded Hex Nipples are available in various
shapes, sizes, thickness and specifications as per the clients’ requirements. They are easy to install and are corrosion resistant. It
exhibits awless finishing and superior performance.Sanghvi International invests in premium quality raw material and modern technology which helps them offer the right kind of products to the clients and thus ensure maximum satisfaction. These fittings are created under the expertise of professionals.

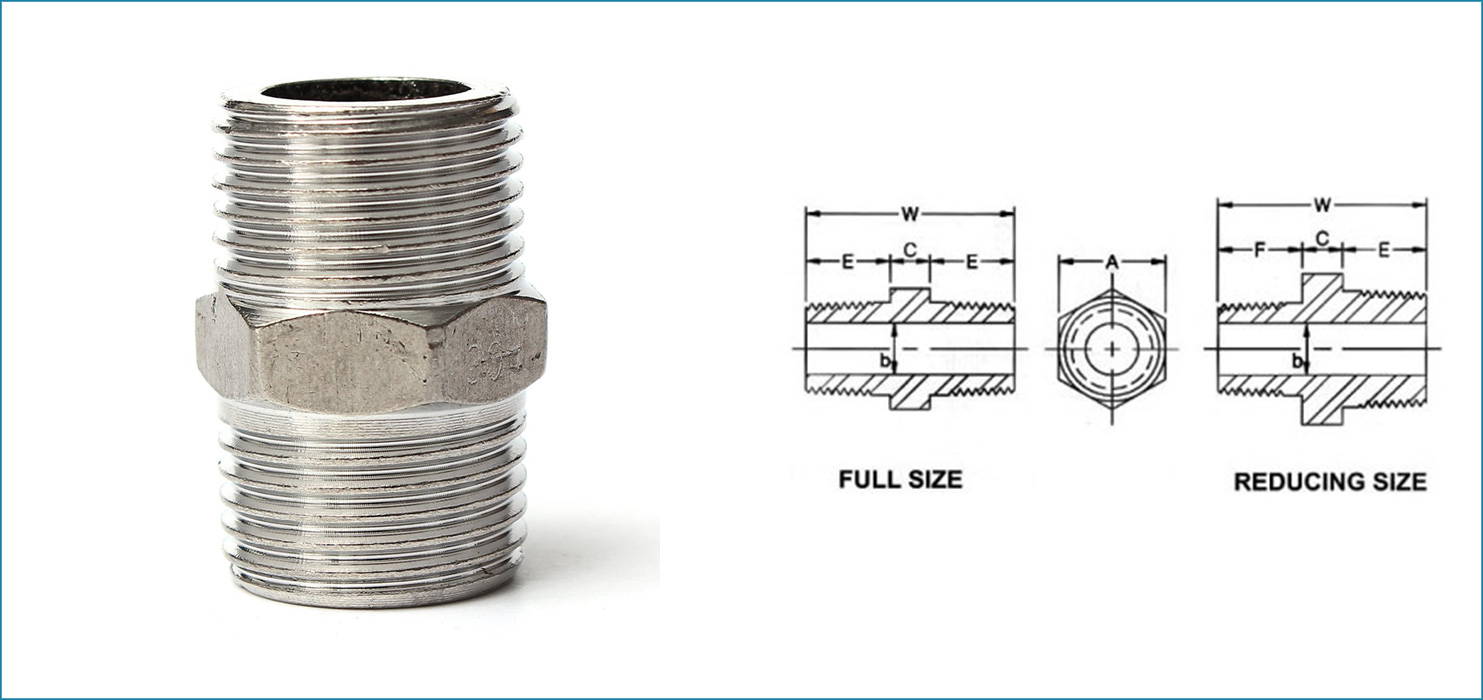

Product Structure
Threaded Hex Nipple Standard
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Threaded Hex Nipple |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, Cupro Nickel |
ASME B16.11 Threaded Hex Nipple Dimensions Standrad
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
ASME B16.11 Threaded Hex Nipple Material
ASME B16.11 Stainless Steel Forged Threaded Hex Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Hex Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Reducing Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Hex Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Reducing Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Reducing Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
