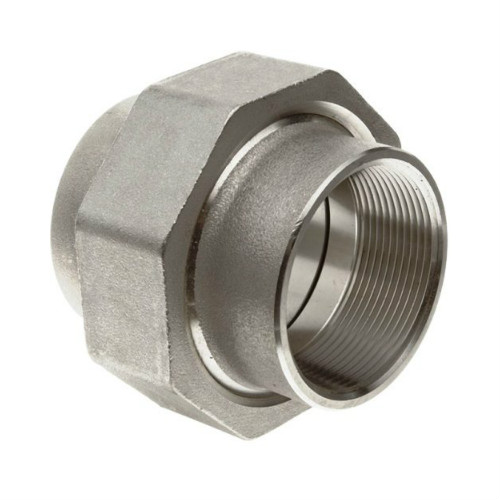

Threaded / Screwed Union
Description
HGFF Group Co.,Ltd. is a manufacturer, distributor and exporter of Threaded / Screwed Unions. It is an innovative company that has received its ISO certification and also ensures complete customer satisfaction. The Stainless Steel Screwed Union is a screwed
joint design and consists of three interconnected pieces. It is designed to allow easy, quick and convenient disconnection of pipes for maintenance or texture replacement. They are primarily used for maintenance and installation purposes. A Forged Threaded ANSI B16.11 Union provides a simple nut transition which allows an
easy release at any time. These fittings are used in low-pressure environments where the dismantling of a pipe is required often. These ASME B16.11 Threaded Unions are used to join pipes or tubes of different dimensions. The above-mentioned fittings are provided to the clients in accordance with the international standards and
specifications. These Fittings are made by Sanghvi International under the expertise of professionals. Modern equipment is utilized for manufacturing the Threaded / Screwed Union Fittings.
Product Structure
ANSI/ASME B16.11 Pipe Union Threaded Standrad

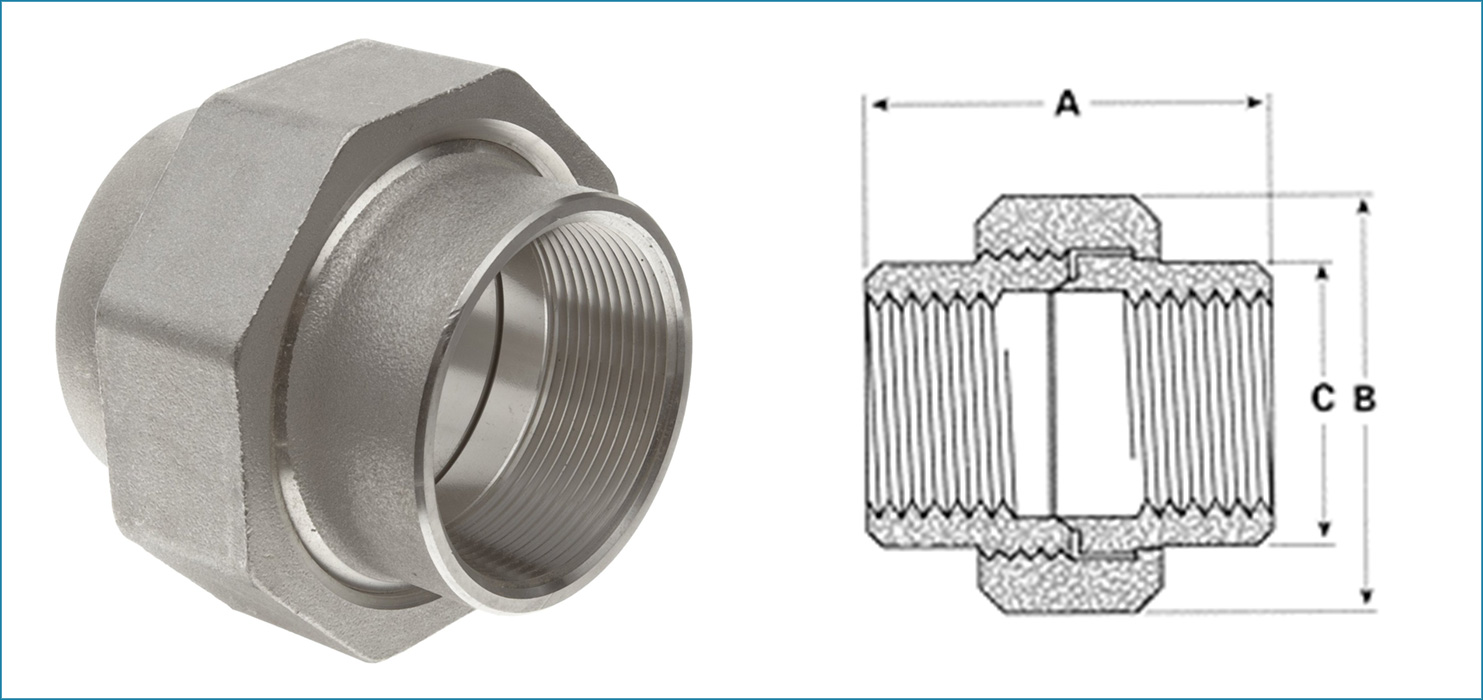

ASME B16.11 Union Dimensions Standrad
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
ASME B16.11 Threaded Pipe Union Material
ASME B16.11 Stainless Steel Forged Threaded Union :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Union:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Union:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Pipe Union:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Reducing Union: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Union:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
