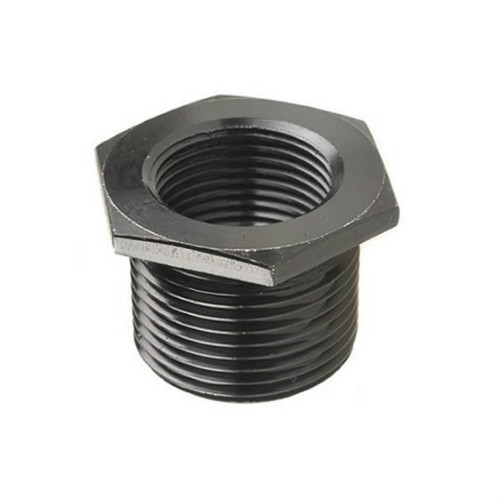

Threaded / Screwed Bushing
Description
Sanghvi International exhibits consistency in quality and additional services provided to the customers
during the production of Threaded / Screwed Bushings. They use premium quality raw material and charge reasonable prices so that each client can avail their products. Stainless Steel Screwed Bushings are the pipe fittings in which the external thread is larger than its internal thread. This allows two pipes of different sizes to be connected. It can be used to reduce the threaded fittings. These ANSI B16.11 Forged Threaded Bushings can be used in various application industries such as oil, gasoline, hydraulic machinery, fertilizing or chemical processing. One of the main features of Threaded Bushings is that it is permanently leakage proof. These fittings are easy
to install and are corrosion resistant. They have high performance and provide long-lasting services. Threaded / Screwed Bushings manufactured by Sanghvi International are designed with adherence
to the international standards. This company offers the most prompt delivery service among other kinds of customer-satisfying services.
Product Structure

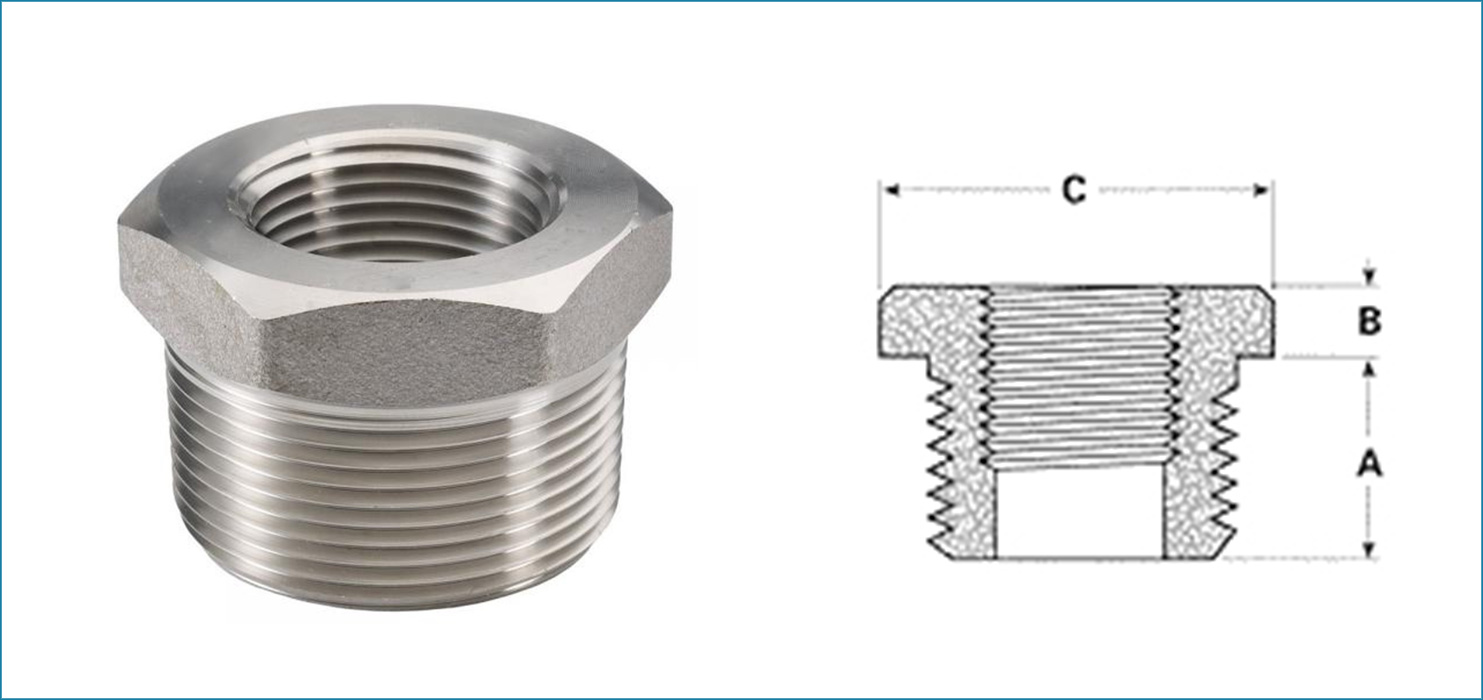

ANSI/ASME B16.11 Threaded Bushing Standard
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Threaded Bushing, Hex Head Bushing, Reducing Bushing |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
ASME B16.11 Threaded Hex Head Bushing Dimensions Standrad
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
ASME B16.11 Threaded Bushing Material
ASME B16.11 Stainless Steel Forged Threaded Bushing :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Hex Bushing:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Reducing Bushing:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Pipe Bushing:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Hex Bushing: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Hex Head Bushing:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
