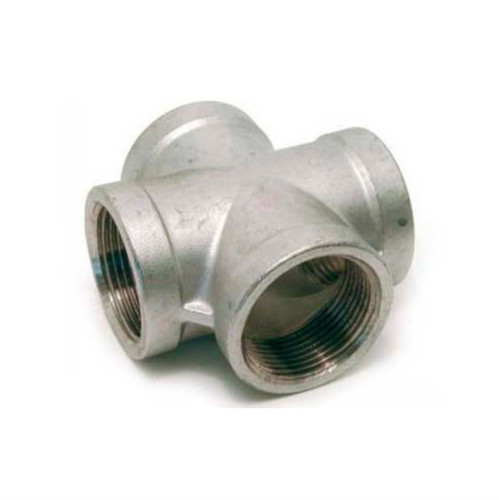

Threaded / Screwed Cross
Description
HGFF Group Co.,Ltd. is leading manufacturer, stockist and supplier of Threaded / Screwed Cross Fittings. It is a company that has received ISO certification and one who provides ultimate convenience to its customers. Threaded Cross fittings make a 90° the branch from the main run of the pipe. It can be used for providing leak-free and torque free sealing in any piping or tubing connection. It is a fitting that is rarely used in a piping system but is an essential part of it nonetheless. Stainless Steel Screwed Cross has two types; straight and reducing. These fittings have one inlet and three outlets or vice versa. ANSI B16.11 Threaded / Screwed Crosses produced by Sanghvi International are designed along the lines of international standards.

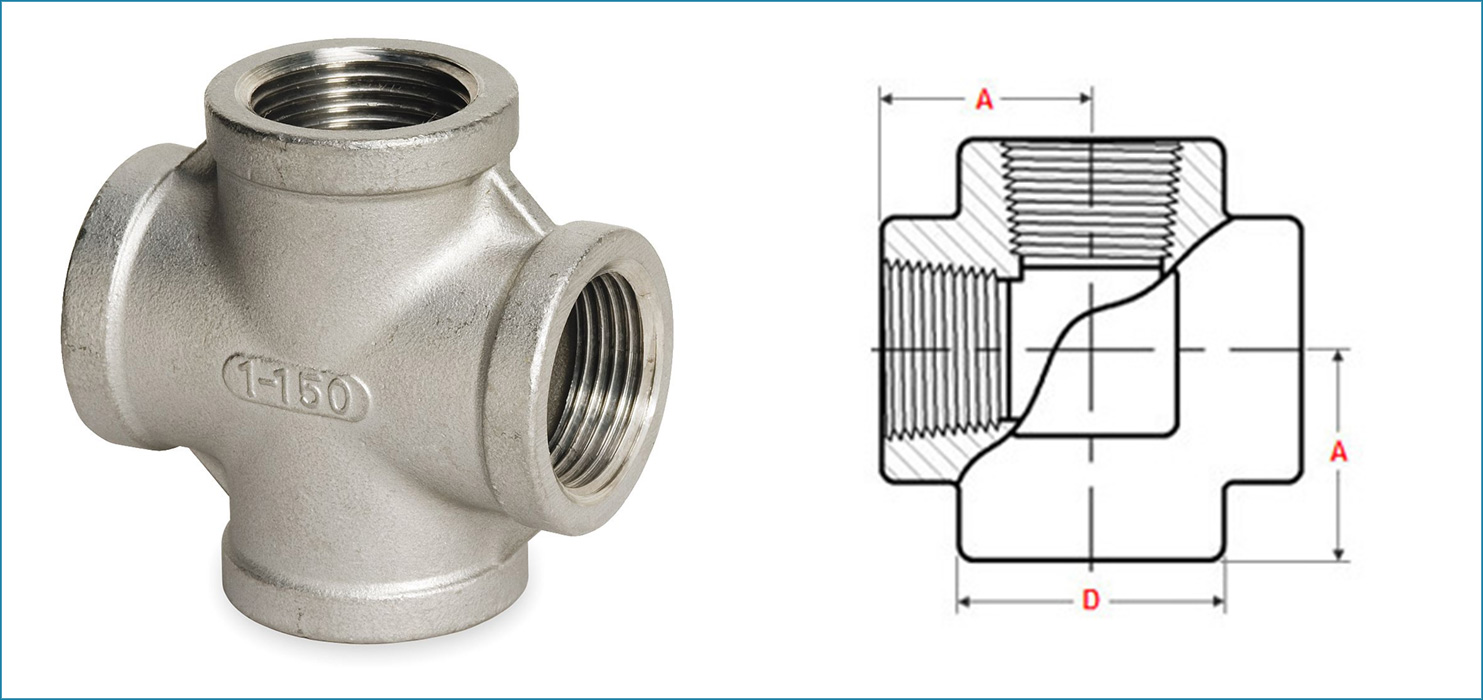

Product Structure
ANSI/ASME B16.11 Threaded Pipe Cross Standard Specification
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Threaded Cross, Threaded Pipe Cross, Threaded Equal Cross |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards of Threaded Equal Cross
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
ASME B16.11 Threaded Cross Material Grades
Stainless Steel Forged Threaded Pipe Cross :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded Equal Cross:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded Cross:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded Equal Cross :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded Cross : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded Equal Cross:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
