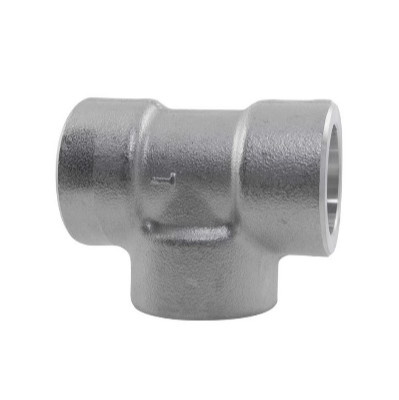

Socket Weld Unequal Tee
Description
An ISO certified company, Sanghvi International , is following international standards to provide the best for its customers who get enticed with the additional services provided to them. Socket Weld Unequal Tees are used to connect the pipes of different diameters and change the direction of the pipe ow. Another term for Unequal Tee is Reducing Tee. In the case of Stainless Steel Socket Weld Unequal Tees, the branch pipe diameter is smaller than the running pipe. The branch is the inlet of the Flow. These ASME B16.11
Socket Weld Reducing Tees are capable of handling high pressures or temperatures of the liquid owing through them. HGFF Group. flawlessly produces ANSI B16.11 Socket Weld Unequal Tees that have
zero defects and are promptly delivered to the clients with any additional changes if the client demands so.

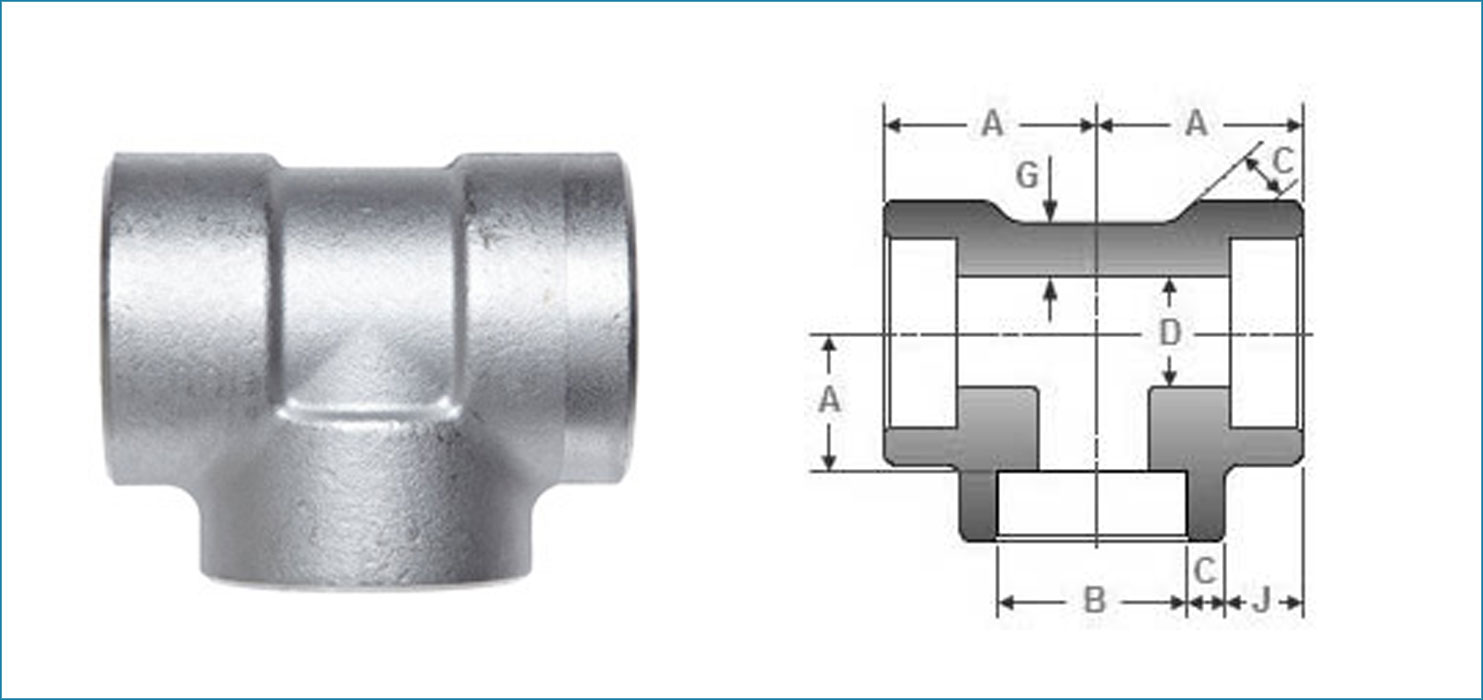

Product Structure
Standard Specification For Forged Socket Weld Unequal Tee
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8″ NB TO 4″ NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Form : Unequal Tee, Forged Unequal Tee, Reducing Tee.
Material & Grades of Forged Socket Weld Unequal Tee :
Stainless Steel Forged Socket Weld Unequal Tee :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L,
F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld Unequal Tee :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld Unequal Tee :ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld Unequal Tee :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM /
ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld Unequal Tee : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C
10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C
71500 ( CU -NI- 70/30)
Nickel Alloy Forged Socket Weld Unequal Tee :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) ,
UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) ,
UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
ASME B16.11 Forged Socket Weld Unequal Tee Available Types
| Forged Socket weld Unequal Tee | Socket Welding Unequal Tee |
| 150 lb. Socket Weld Forged Tee | 2 inch Socket weld Tee |
| ASME B16.11 Socket weld Reducing Tee | 3000LB Socket Weld Unequal Tee |
| Socket Weld Unequal Tee Fittings | Class 6000 Socket Weld Forged Tee |
| ANSI B16.11 Forged Socket Weld Unequal Tee | BS 3799 Forged Socket Weld Unequal Tee |
| Forged Socket weld Reducing Tee | Socket Weld Reducing Tee Weight |
| Forged Steel Socket weld Reducing Tee | High Quality Socket weld Forged Tee |
| 1 inch Socket Weld Unequal Tee | Socket Weld Forged Pipe Tee |
